1.00" Quartz
Application

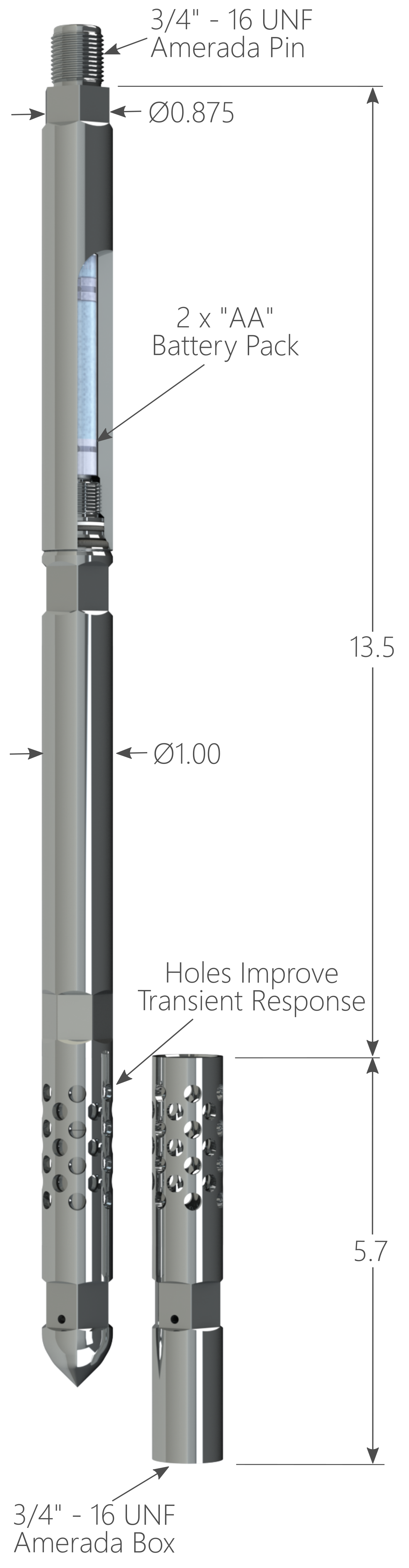

The 1.0” O.D. Quartz Gauge uses a AA battery as its power source. Limited space is available for gauge carrier, coiled tubing, and DST operations and the AA battery is the smallest form factor available for powering a quartz tool.
*Make sure to use the battery calculator in the DataCan download software to determine maximum job length for specific applications.
Features
- 0.00006% Full-Scale Resolution
- 177°C
- 2 Million Sample Capacity
- Inconel 718 and MP35N – NACE MR0175
- Electron Beam Welded
- Fast Temperature Response
Benefits
Quartz gauges provide operators with the highest data stability and resolution. DataCan recommends quartz gauges in wells with bottom hole temperatures above 135°C.
Quick Specs
| OD | Maximum Temperature | Maximum Pressure | Memory Capacity | |
|---|---|---|---|---|
 |
1.00" | 177°C | 30,000 psi | 2 Million Samples |
